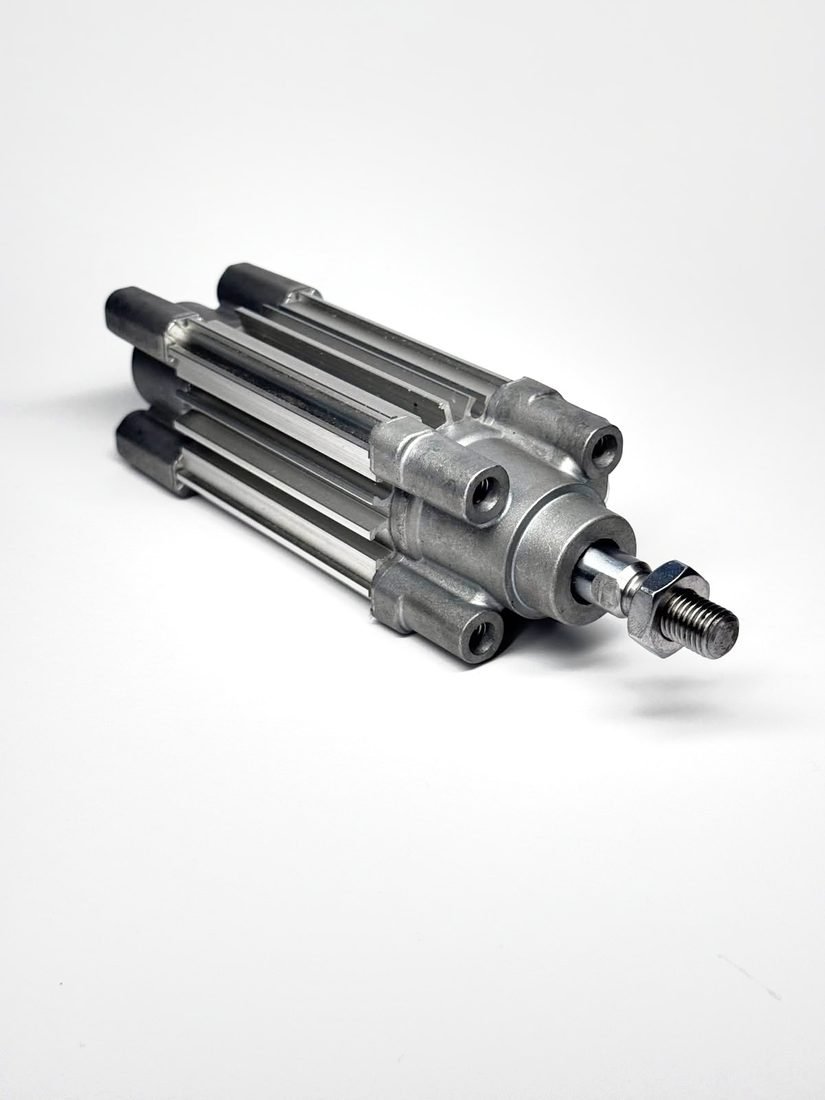

CS95-32

Price on request

Delivery & ordering

Riga stock → shipped from the shelf
Outside Riga stock → we put you in touch with the representative
Price and exact stock confirmed in the quote

Request → we confirm stock + price → we ship

Request a quote →

Order code	CS95-32
Brand	SMC
Specification	Cylinder (ISO 15552 / large bore)
Category	Cylinders

Specification	Cylinder (ISO 15552 / large bore)
Category	Cylinders
Darbība	Divpusēja
Spiediens	0.05–1.0 MPa
Temperatūra	-20…+80 °C

⚠ Full General Data for this series has not been entered yet. Above is only what is confirmed. We do not invent specifications — the data must come from the Camozzi catalogue series page.

Official 3D CAD — SMC PARTcommunity
STEP · IGES · SOLIDWORKS · STL — configure by size Open ↗ EPLAN data — SMC EPLAN Library
Fluid + Electric P8 macros for schematics · 42,000+ articles Open ↗

Quick 3D model (STL)
Vienkāršota ģeometrija · CS95-32 · vietai/kolīzijāmGet ↓

Datasheet (PDF)
CS95-32Get ↓

Exact CAD with full dimensions comes from the official Camozzi portal. Our STL is simplified — fine for space planning, not for manufacturing.
